Product Model | VM-S250802P |
Ports | 8*10/100/1000/2500Mbps RJ45 PoE Ports

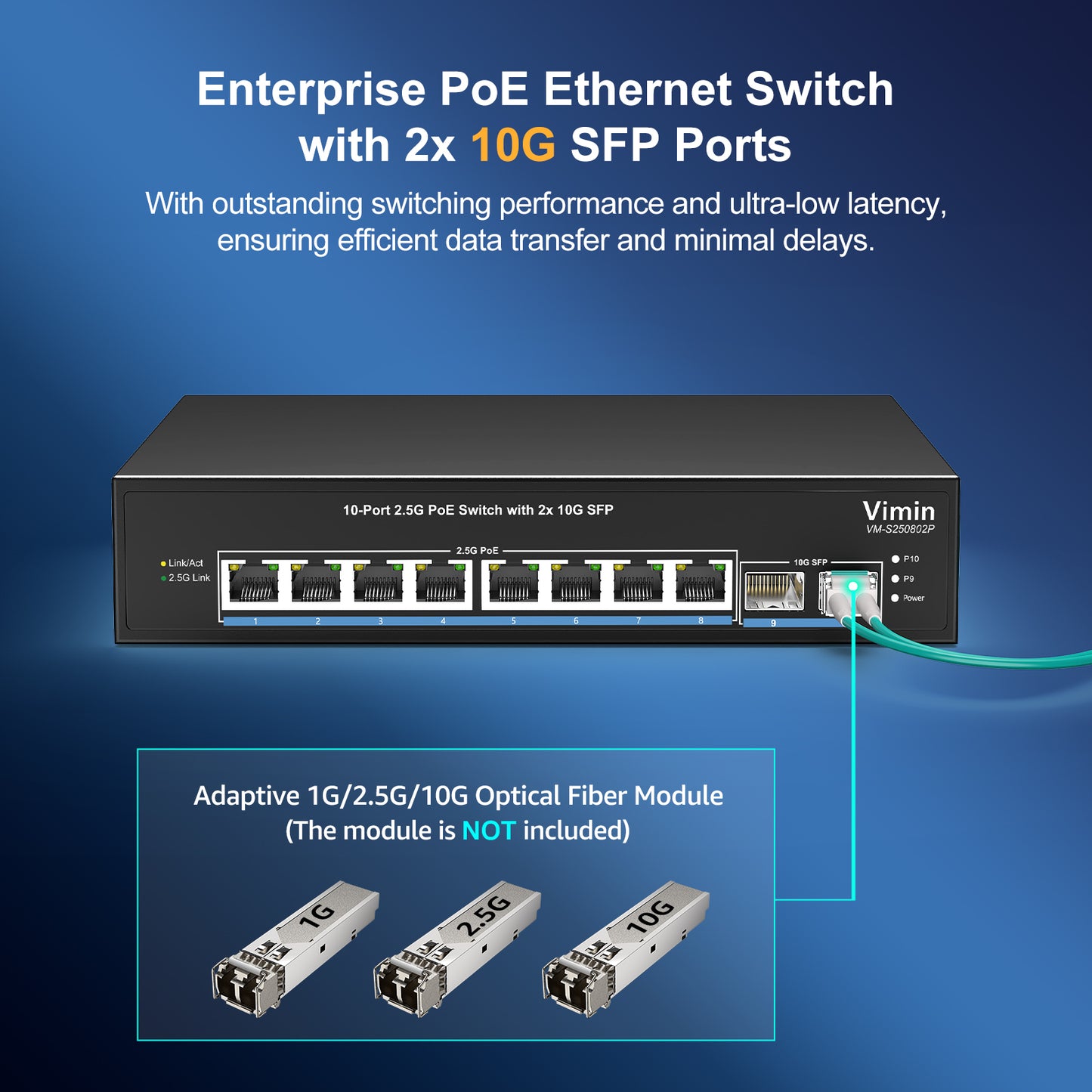

2*10G SFP+ Ports |
PoE Power | 130W |
Total Power | 150W |
Power Pin | 1/2(+), 3/6(-) |
Backplane Bandwidth | 80Gbps |
Power Input | Adapter input voltage: AC 100-240V |

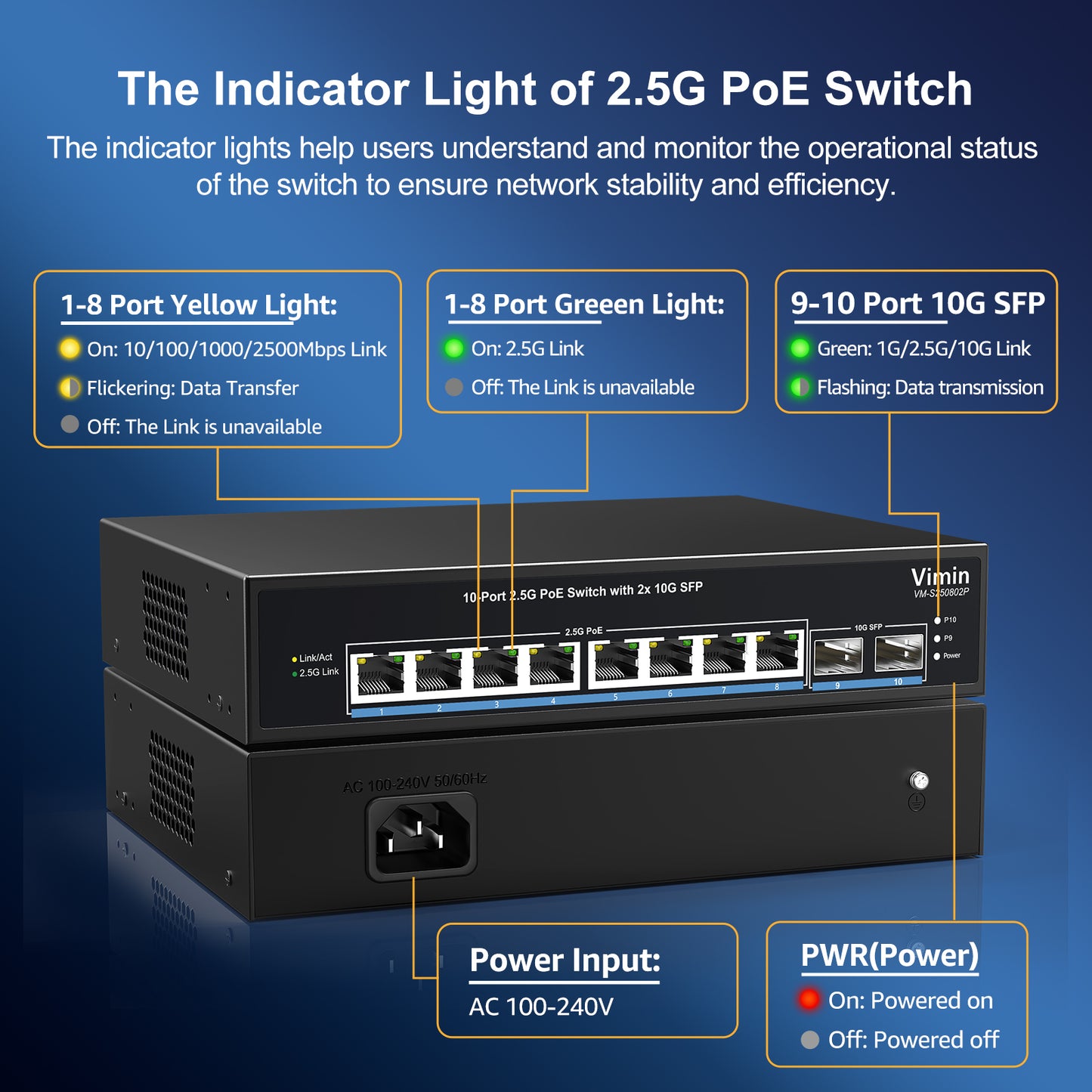

Indicator Light | 1-8Network port green indicator:
On: 2.5G Link connect normal,
Off: Link off,
1-8 Network port yellow indicator:
On: 10/100/1000M/2.5G Link connect normal,
Off: Link off,
Flashing: data transmission
|
Working Environment | Working Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
MAC Address | 16K |
Jumbo Frame | 12KBytes |
VLAN | 4096 |
Network Protocol | IEEE802.3(Ethernet)
IEEE802.3u(Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet)
IEEE802.3bz(5G Ethernet)
IEEE802.3z(Gigabit Ethernet)
IEEE802.3cb(10G Ethernet)
IEEE802.3x(Flow Ethernet)
IEEE802.3at
IEEE802.3af |
Industry Standard | EMI: FCC Part 15 CISPR(EN55032) class
AEMS: EN61000-4-2(ESD) EN61000-4-5(Surge) |
Network Medium | 10Base-T: UTP category 3, 4, 5 cable (max 100m)
100Base-Tx: UTP category 5, 5e cable (max100m)
1000Base-T: UTP category 5e, 6 cable (max100m)
2.5GBase-T:UTP category 5e, 6 cable (max100m) |
MTBF | 50000 Hours |
Packet Forwarding Rate | 59.52Mpps |
