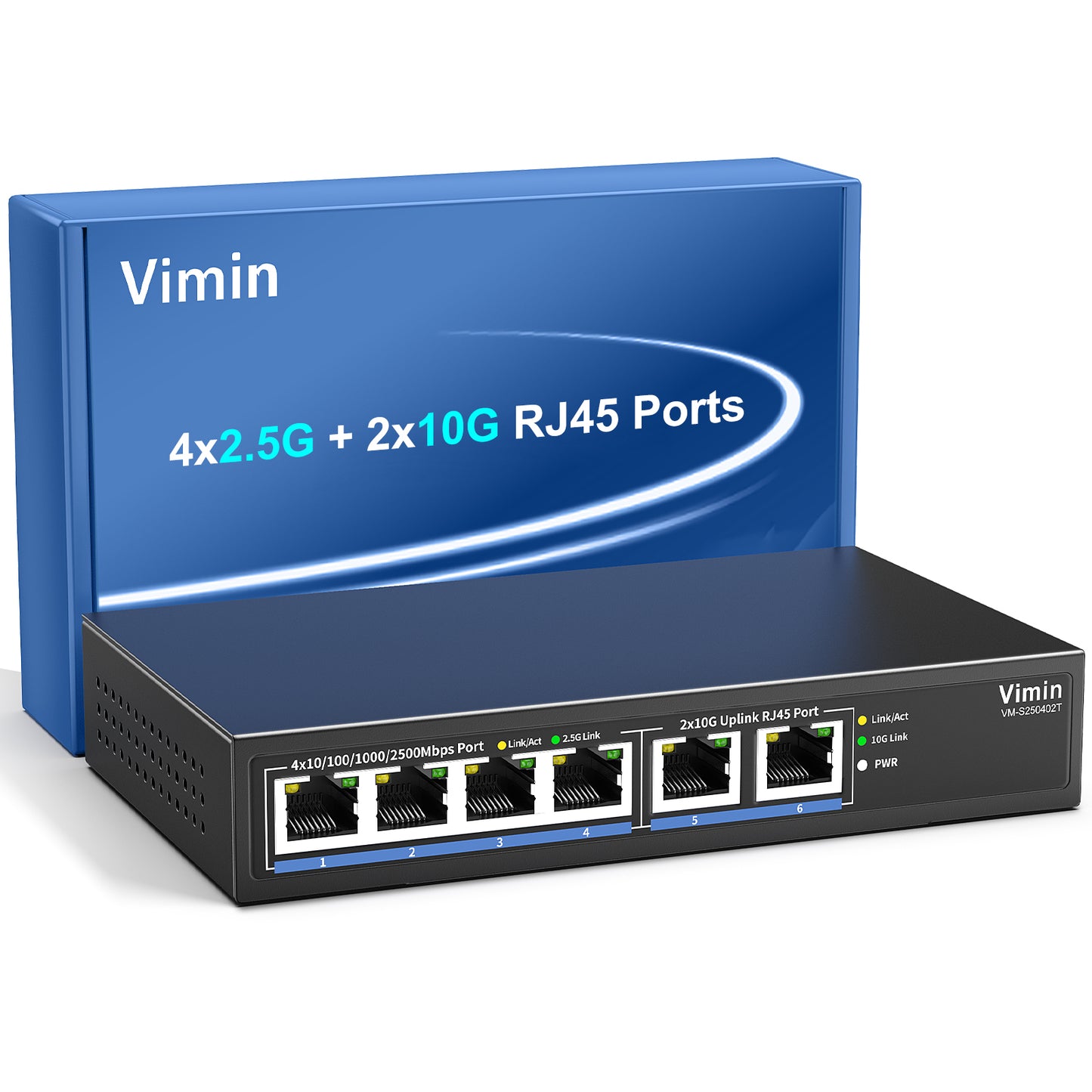

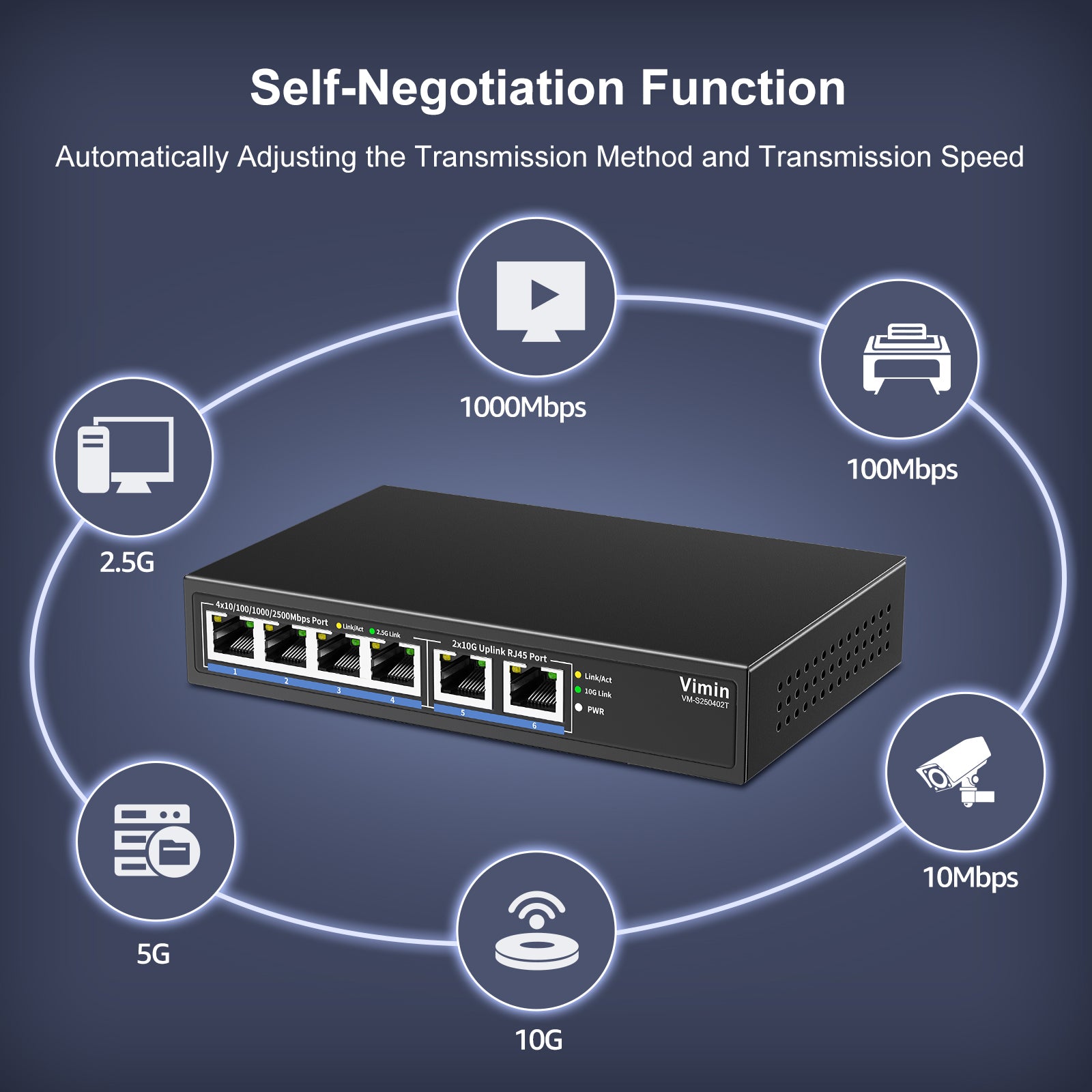

✓ 2.5G/10G 4+2 Port Aggregation - 4×2.5G & Dual 10G Base-T ports deliver ultra-fast 10/100/1000/2500Mbps auto-negotiation, perfect for bandwidth-intensive NAS/PC connections with future-proof 10G Ethernet scalability.
✓ Wire-Speed 10G Network Switch - Non-blocking 60Gbps switching capacity ensures zero packet loss for 4K streaming/gaming, supporting full IEEE 802.3bz 2.5G/5G standards and backward compatibility with CAT5e/CAT6 cables.

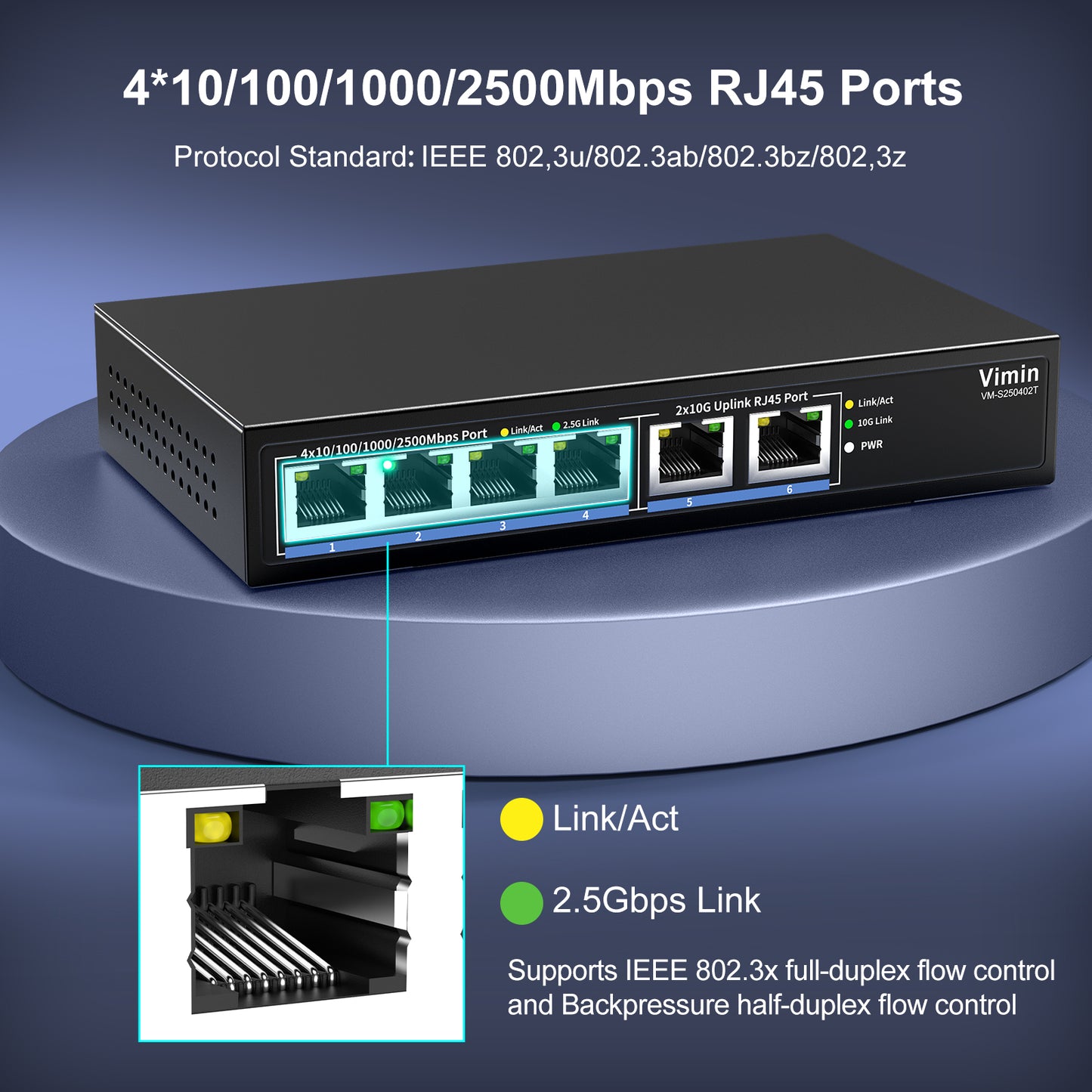

✓ Flow Control - Dual-mode IEEE 802.3x (full-duplex) & Backpressure (half-duplex) technology prevents data overflow, maintaining stable 10GBase-T connections for IP cameras/SMB servers.
✓ Plug & Play Network Switch - Auto-MDI/MDIX with dynamic LED indicators enables instant deployment - simply connect CAT6A cables for instant 10Gbps uplink without complex configurations.

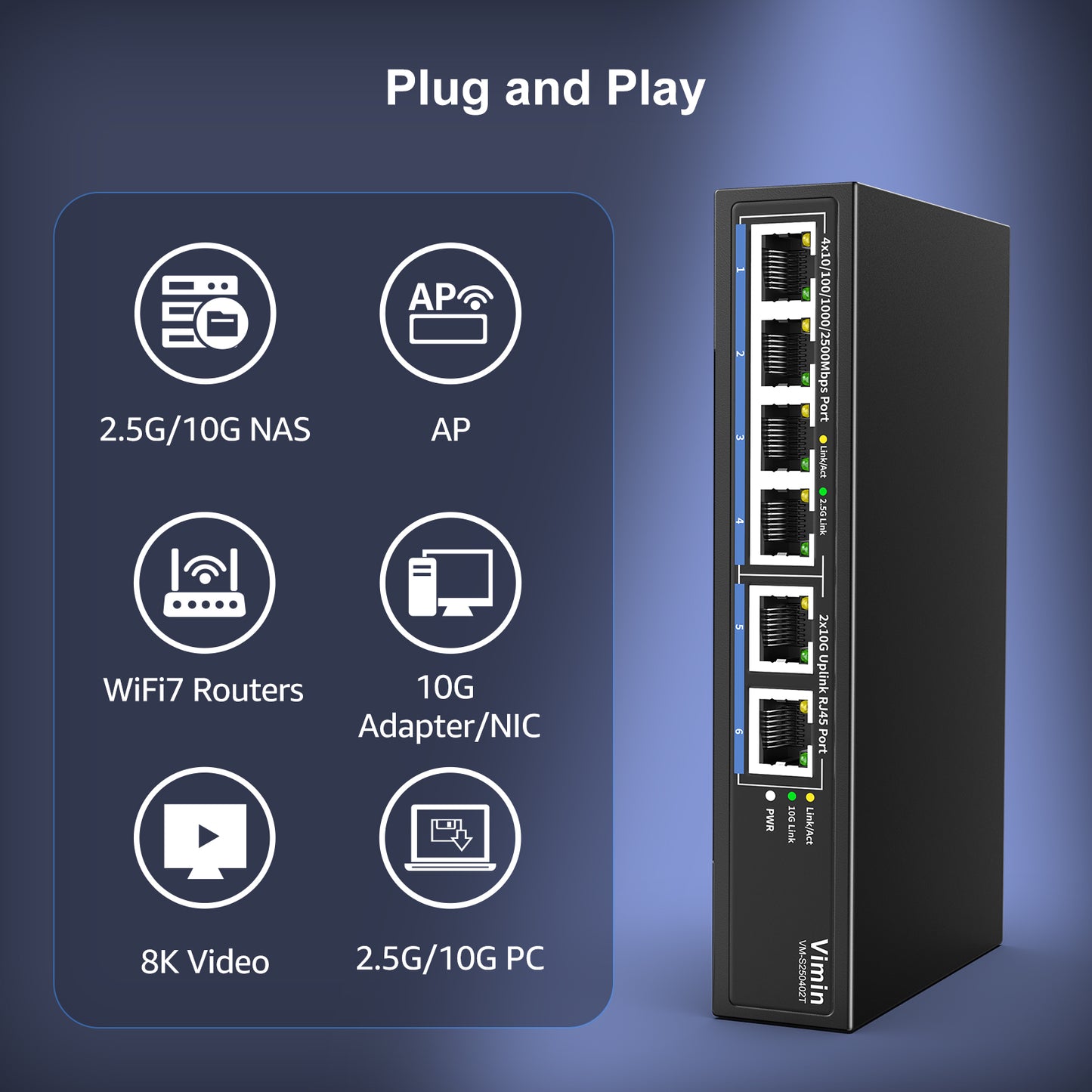

✓ Wider Application - Metal case, fanless design, suited for various application, such as home entrainment, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
| Product Model | VM-S250402T |
|---|
| Ports | 4 x 10/100/1000/2500Mbps RJ45 ports,
2 x 10G RJ45 ports |
|---|
| Indicator | Link/Act indicators,2.5G Speed indicators,10G Speed indicators,PWR indicators |
|---|
| Power Input | DC 12V/1.5A |
|---|

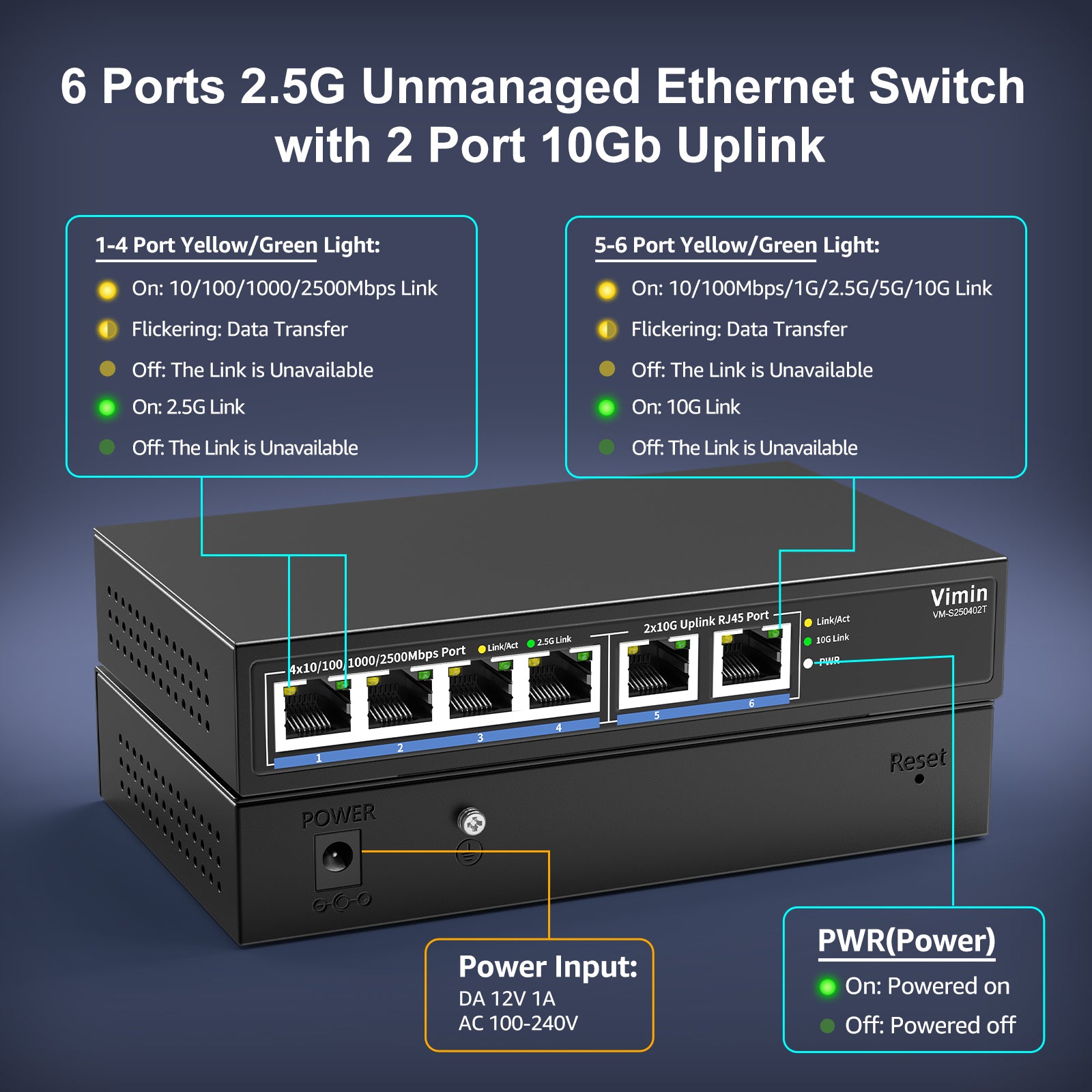

| Indicator Light | 1-4 Network port green indicator:
On: 2.5G Link connect normal
Off: Link off,
5-6 Network Port Green Indicator:
On: 10G Link connect normal
Off: Link off
1-4 Network port Yellow indicator:
On: 10/100/1000M/2.5G Link connect normal
Off: Link off
5-6 Network Port Yellow Indicator:
On:10/100/1000M/2.5G/10G Link connect normal
Off: Link off
Flashing: data transmission |
|---|
| Working Environment | Operating Temperature: 0℃ ~45℃ (32℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
|---|
| Switching Capacity | 60Mbps |
|---|
| MAC Address | 4k |
|---|
| Transfer Mode | Store-and-Forward |
|---|
| Industry Standard | IEEE 802,3u/802.3ab/802.3bz/802,3z |
|---|

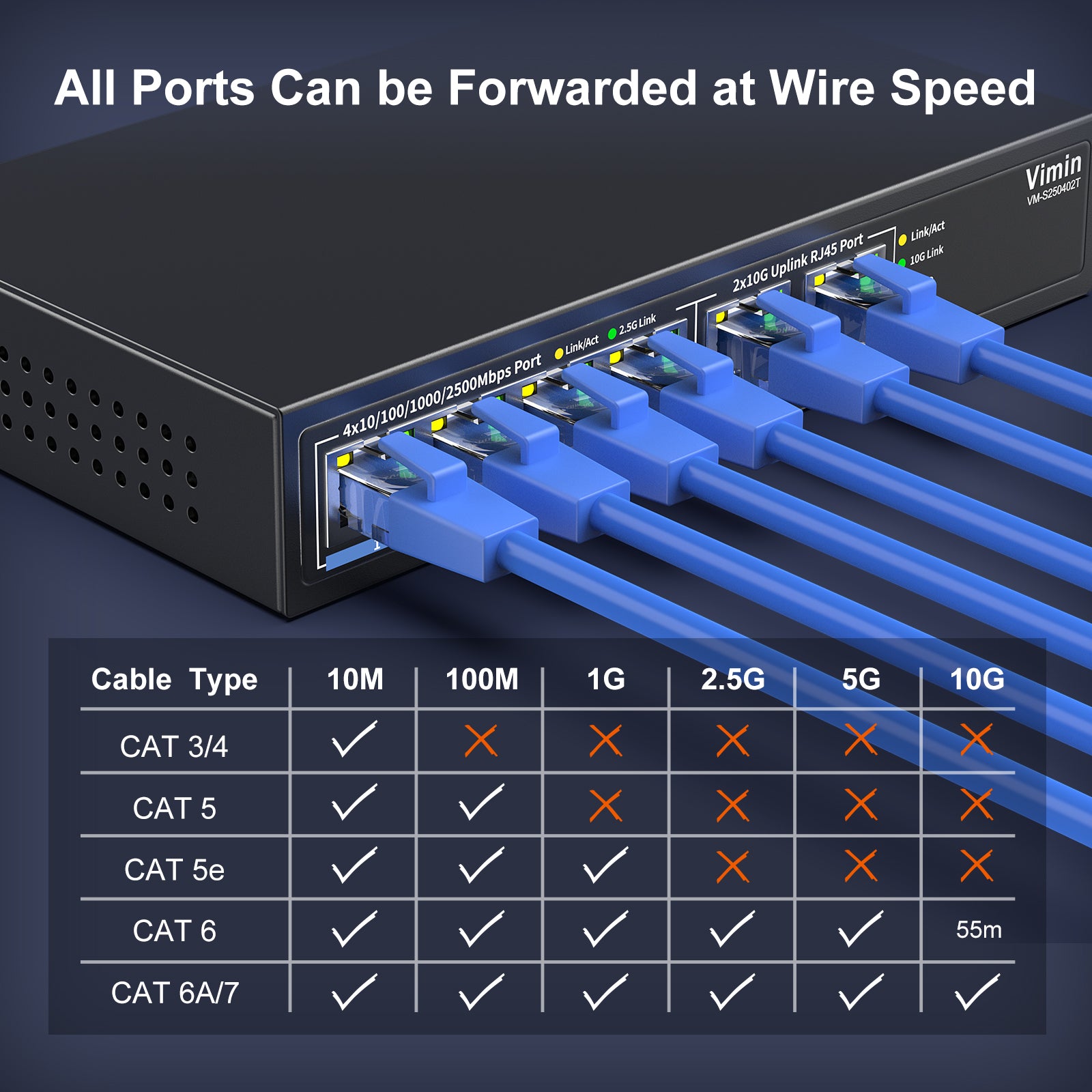

| Network Medium | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) ;
100Base-Tx: UTP category 5, 5e cable (maximum 100m) ;
1000Base-T: UTP category 5e, 6 cable (maximum 100m) ;
2.5GBase-T: UTP category 5e, 6 cable (maximum 100m) ;
10GBase-T: UTP of Cat 6 (maximum 55m) or STP of Cat 7 (maximum 100m) |
|---|
| Packet Forwarding Rate | 44.64Mpps |
|---|
| Weight and Size | 160*95*29mm |
|---|
