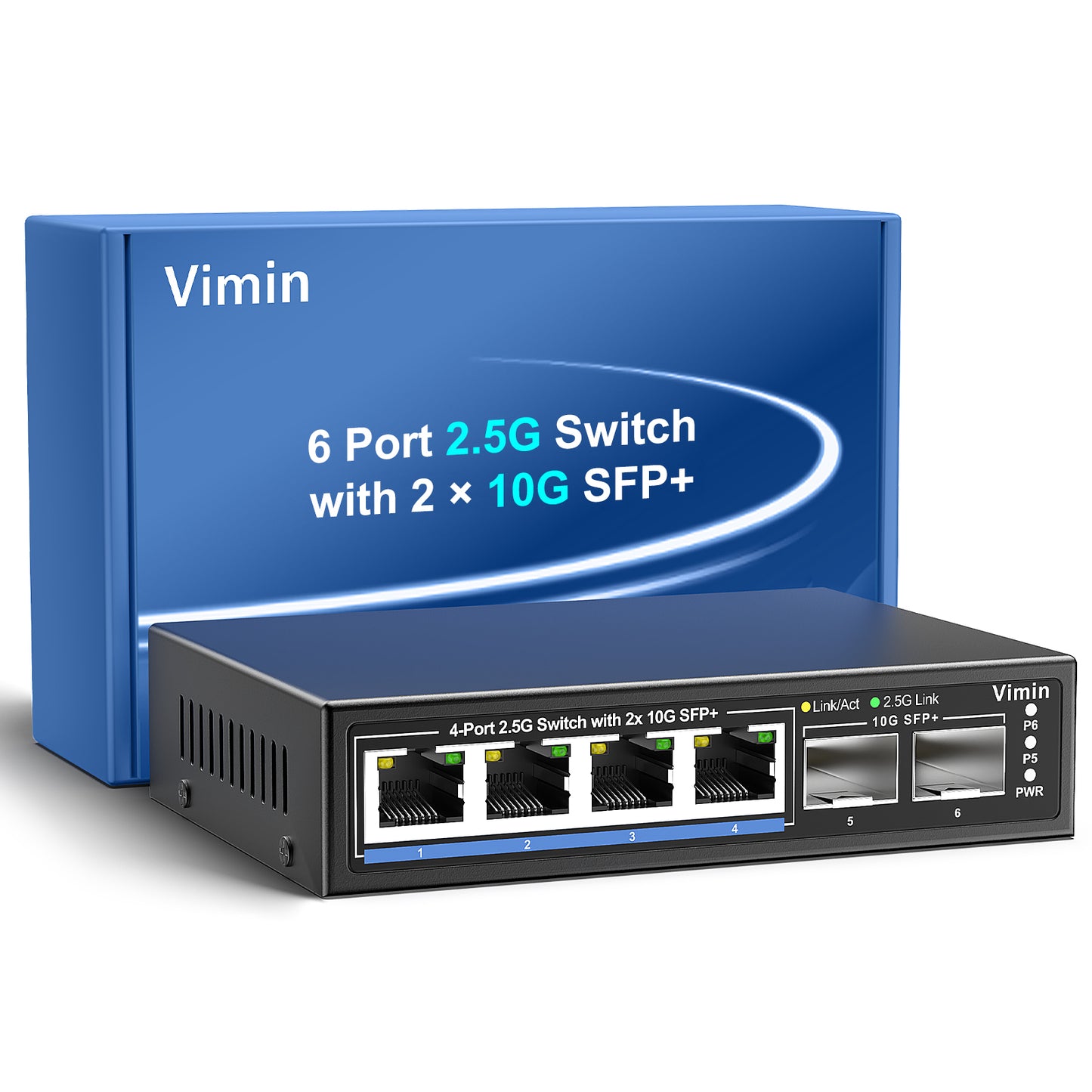

Product Model | VM-S250402-N |
Ports | 4*10/10011000/2500Mbps RJ45 ports

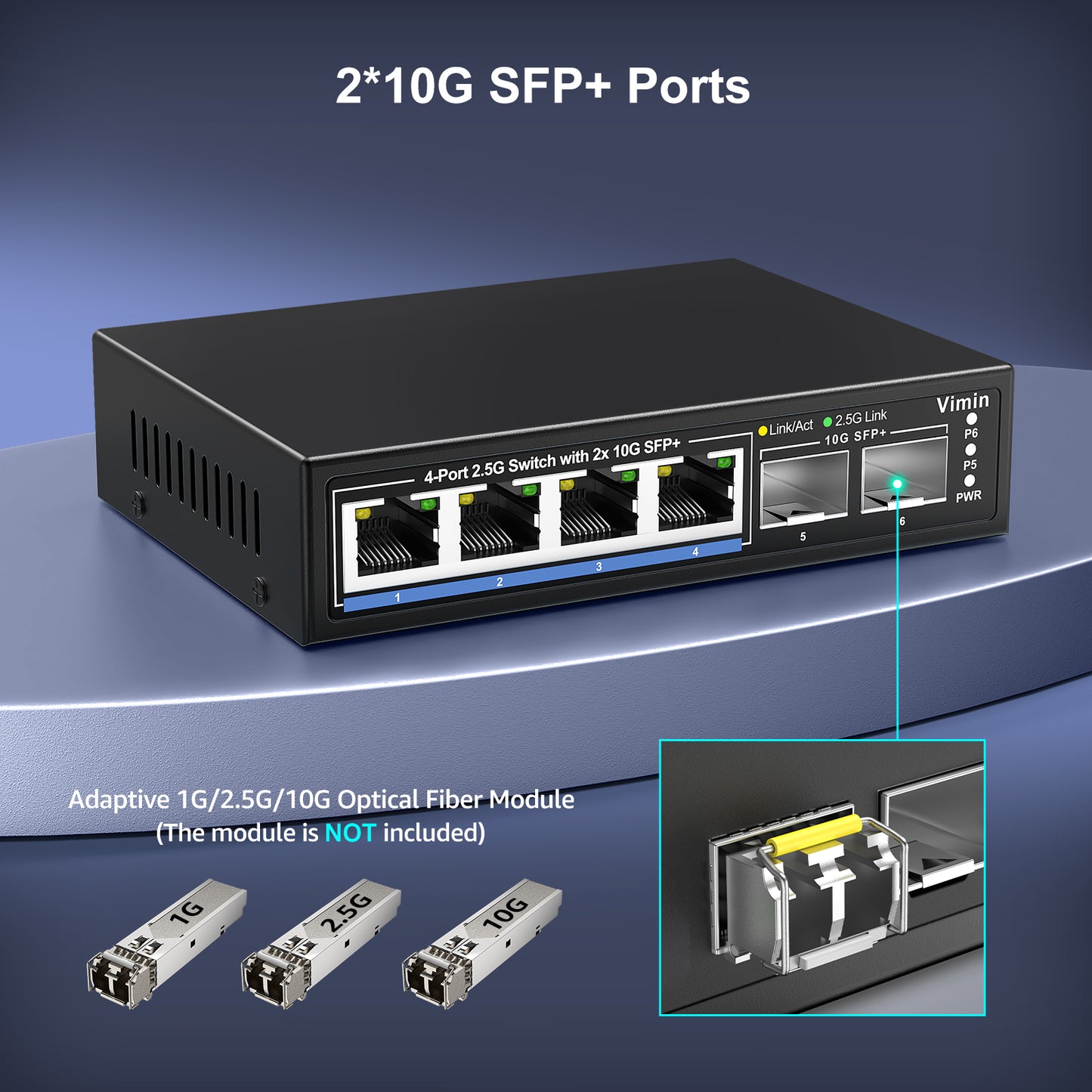

2*10G SFP+ Port |
Backplane Bandwidth | 60Gbps |
Power Voltage | Adapter input voltage: AC 100-240V
Switch input voltage: DC 12V1A |
Indicator Light | 1-4 Network port green indicator:
On: 2.5G Link connect normal
Off: Link off,
1-4 Network port Yellow indicator:
On: 10/100/1000M/2.5G Link connect normal
Off: Link off
Flashing: data transmission |
Working Environment | Working Temperature:0C~45℃ (0 °F~113 °F)
Storage Temperature:-40c~70℃(-40 ~158 °F)
Operating Humidity:10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
MAC Address | 4K |
Jumbo Frame | 10KBytes |
VLAN | 4096 |

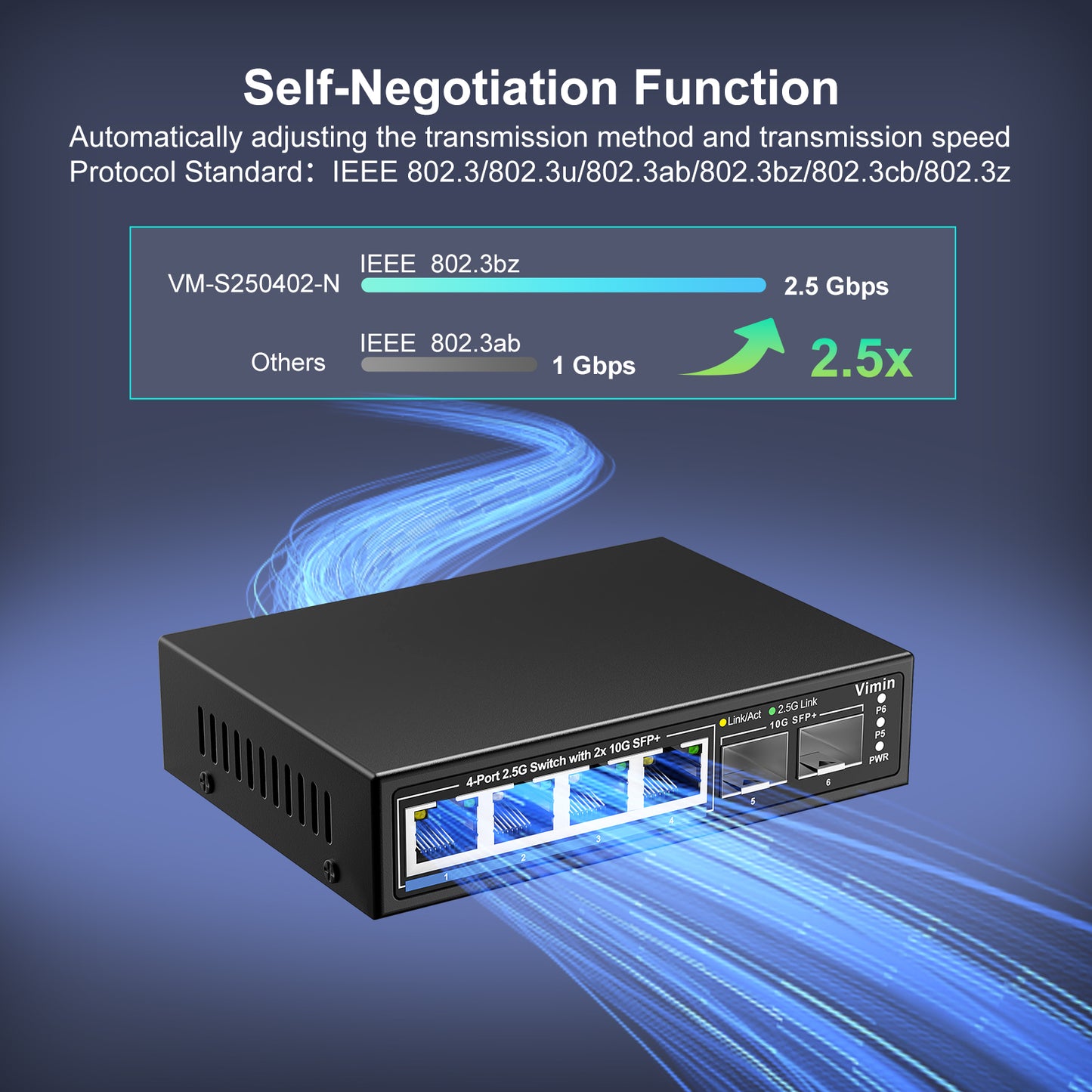

Network Protocol | IEEE802.3(Ethernet)
IEEE802.3u(Fast Etheret)
IEEE802.3ab(Gigabit Ethemet)
IEEE802.3bz(5G Ethernet)
IEEE802.3cb(10G Ethernet)
IEEE802.3x(Flow Ethernet) |
Industry Standard | EMI: FCC Part 15 CISPR(EN55032)class
AEMS: EN61000-4-2(ESD)EN61000-4-5(Surge) |
Network Medium | 10Base-T: UTP category 3,4,5 cable (max100m)
100Base-Tx: UTP category 5,5e cable(max100m)
1000Base-T:UTP category 5e,6 cable (max100m)
2.5GBase-T:UTP category 5e, 6 cable (max100m) |
MTBF | Storage & forward |
Packet Forwarding Rate | 44.64Mpps |

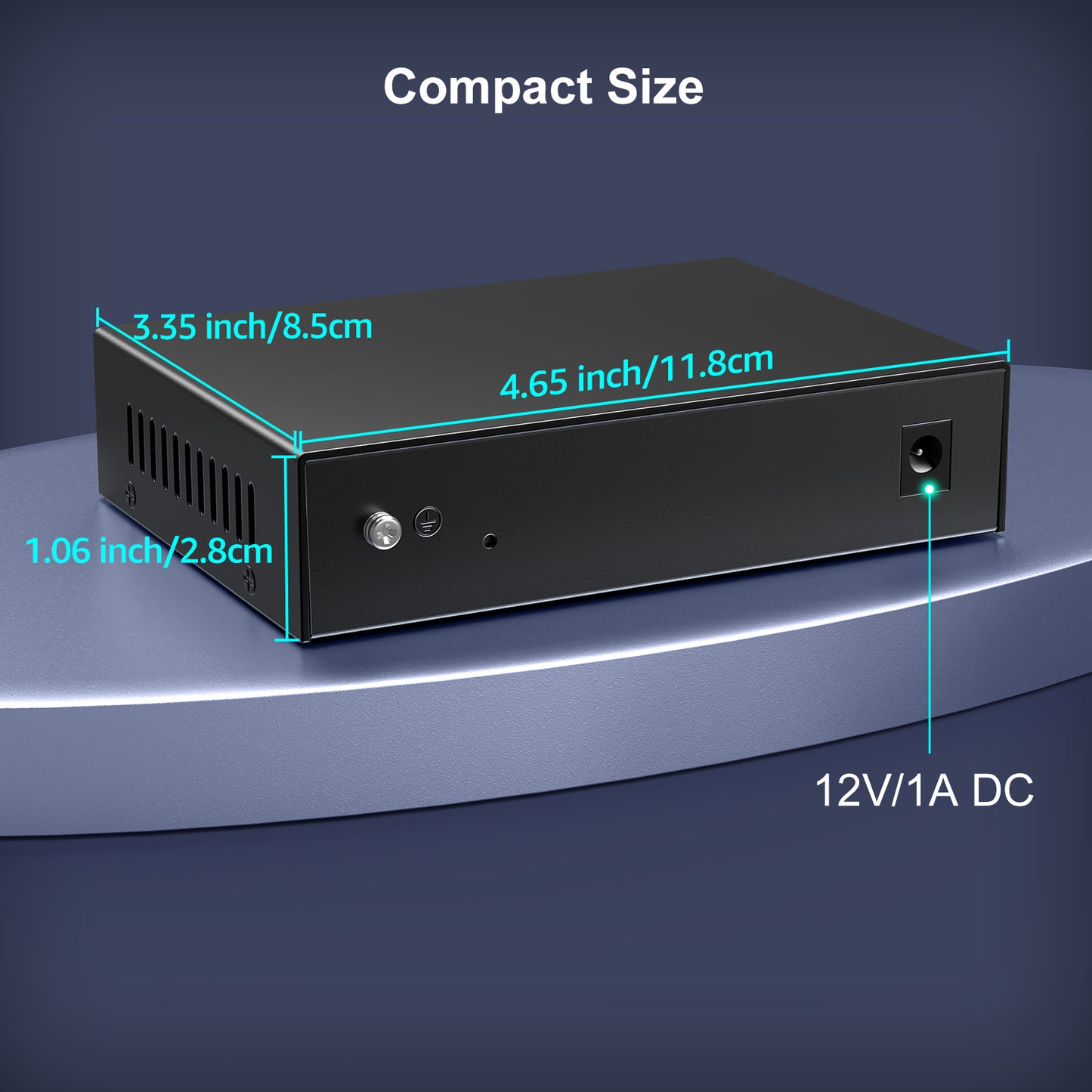

Weight and Size | Product Size:160*95*30mm
Product Gross-Weight: 0.35KG |
