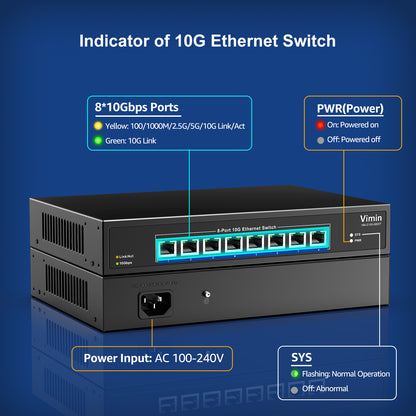

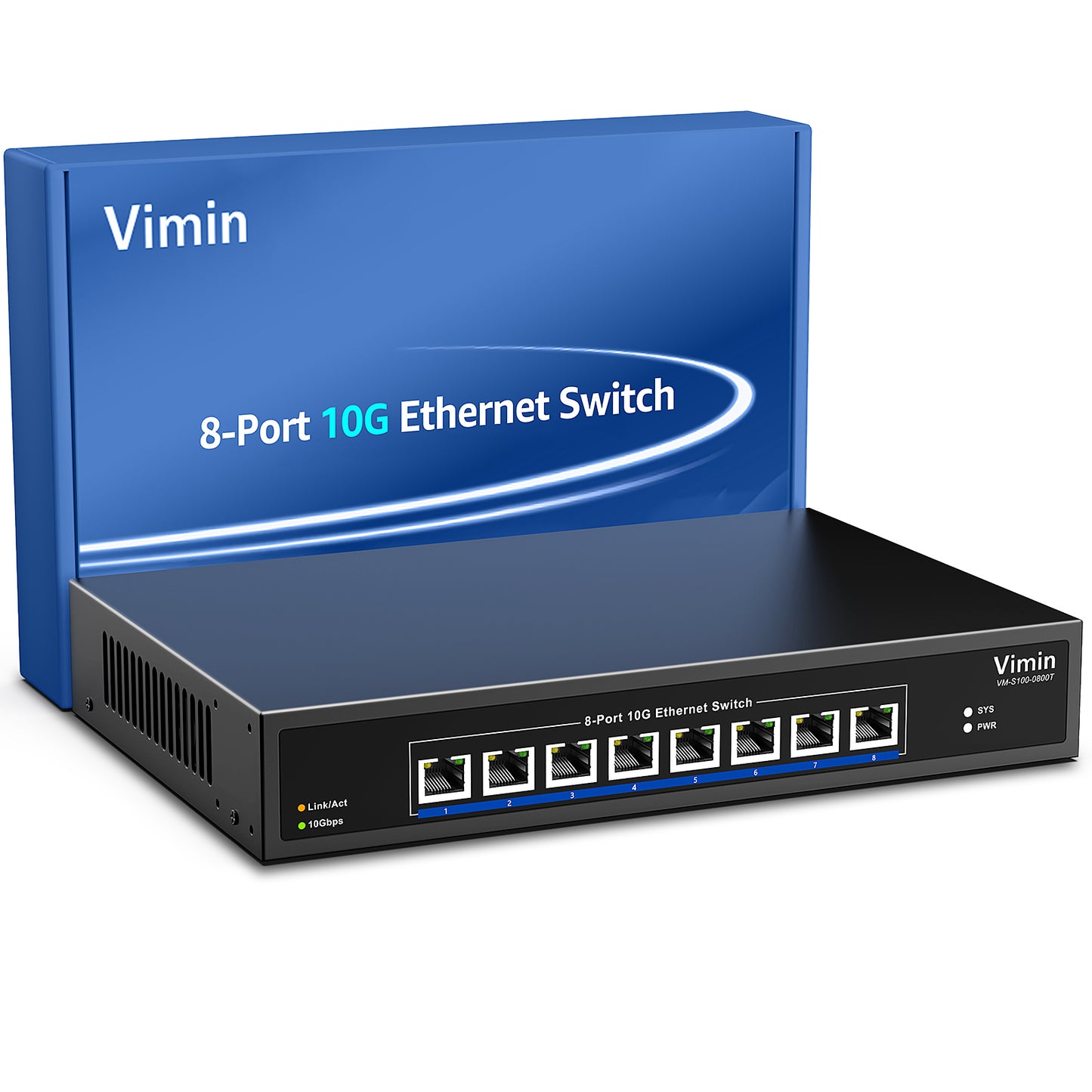

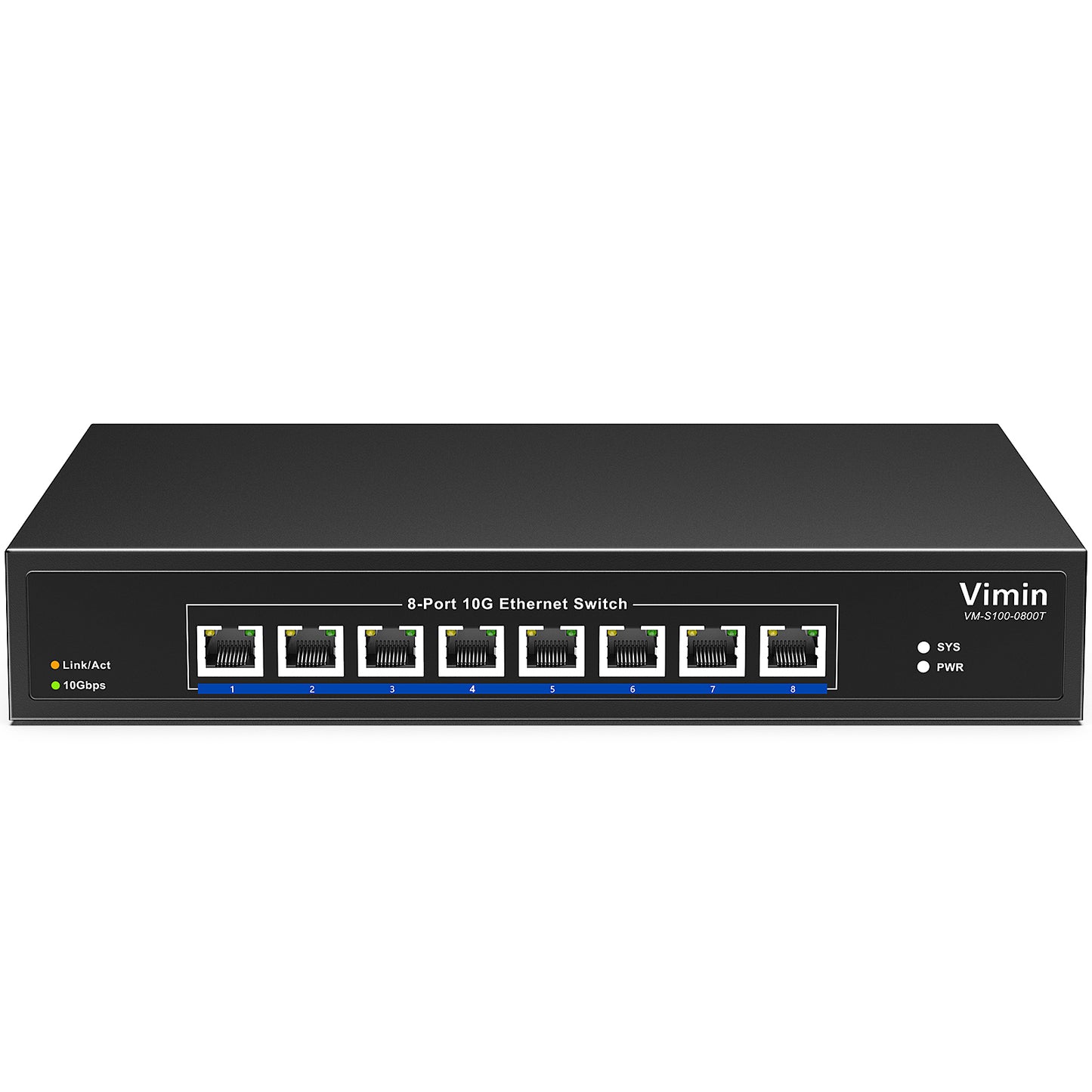

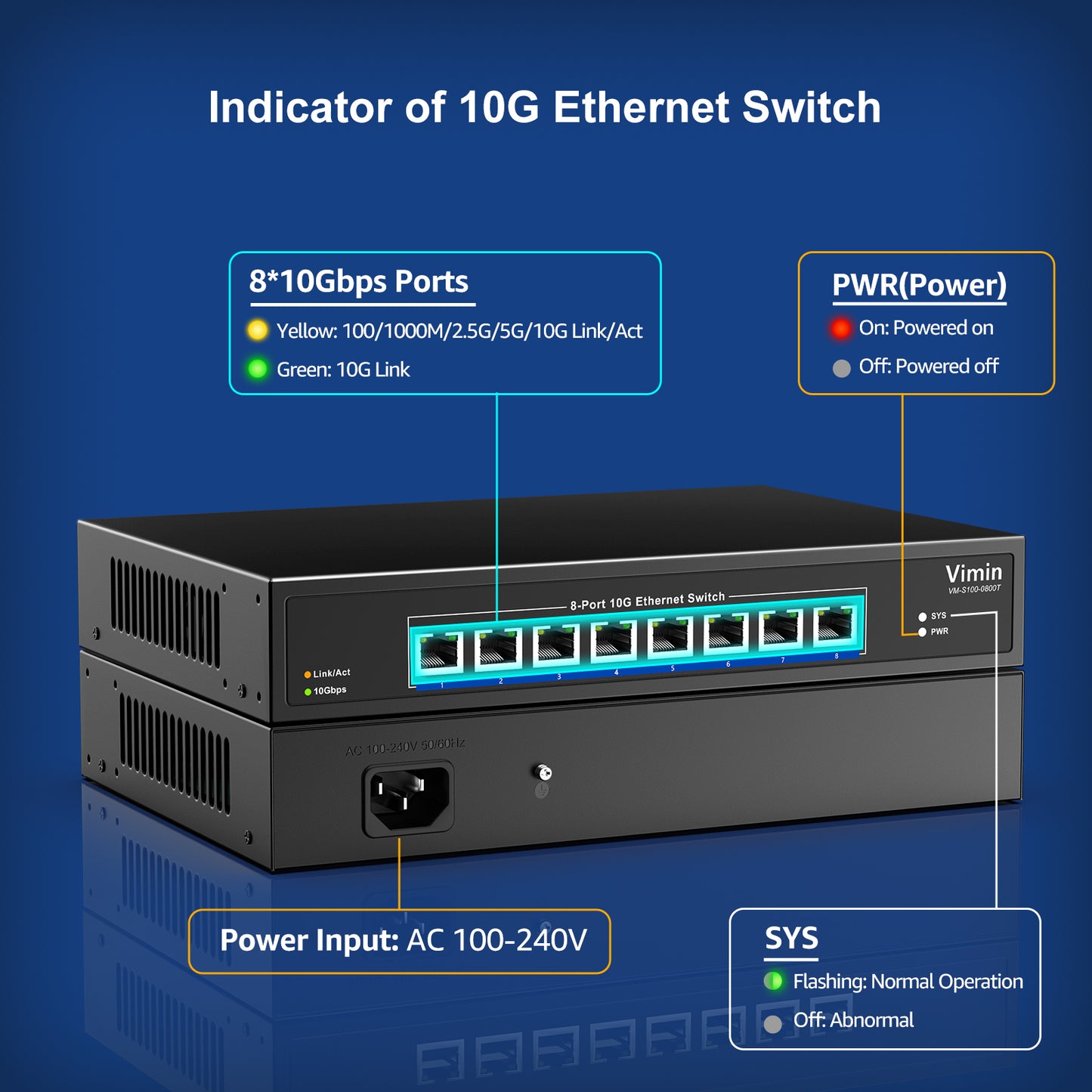

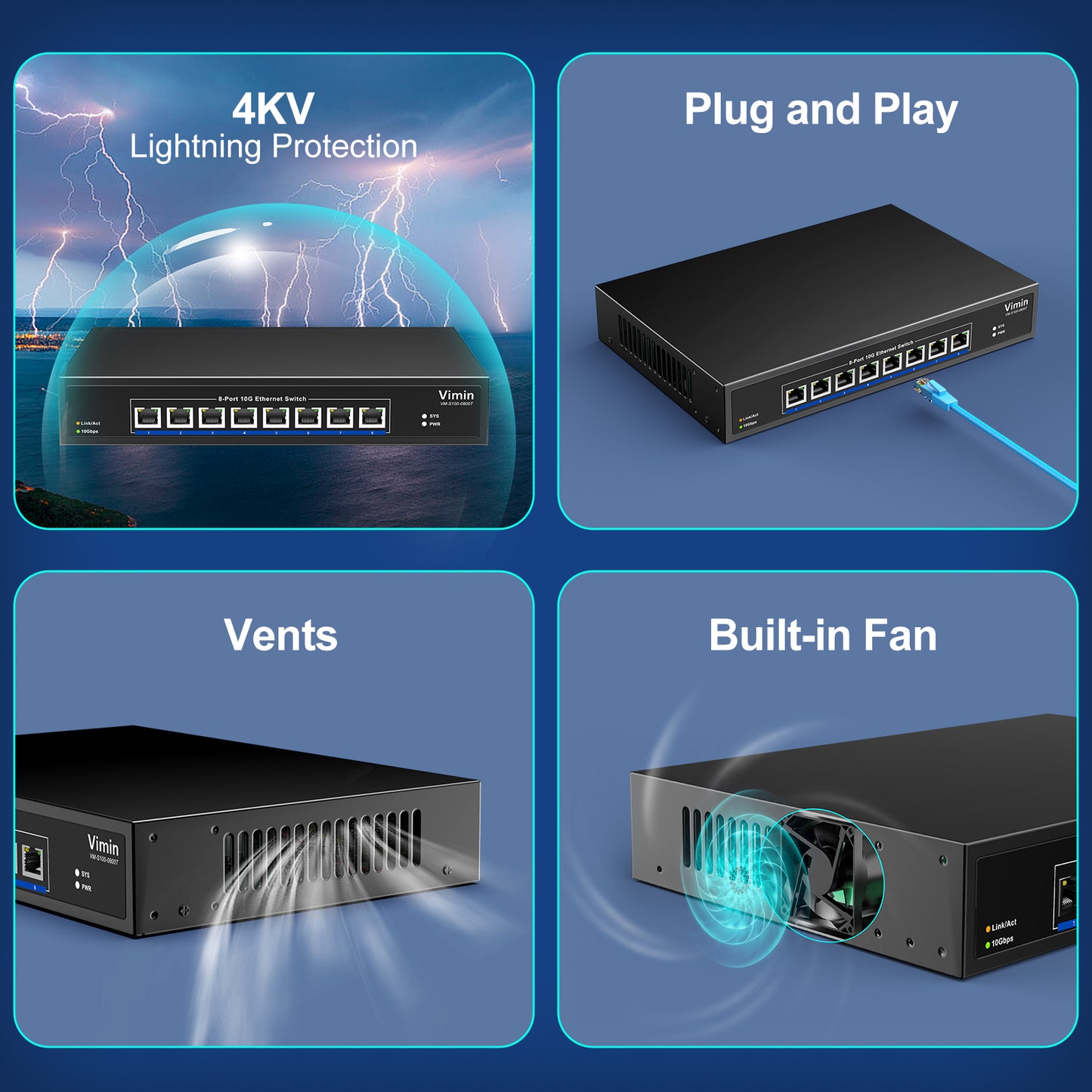

| Product Model | VM-S100-0800T |
|---|
| Ports | 8* 100M/1000M/2 .5G/5G/10G RJ45 port |
|---|
| Power Input | AC 100 -240V50/60HZ |
|---|
| Working Environment | certification: FCC, CE, ROHS
Qperating Temperature: 0。cto 45。c (32。Fto 113。F)
storage Temperature: -40c to 70c( -40F to 158。F)
operating Humidity: 10%to 90% RH non -condensing
storage Humidity: 5%to 95% RH non-condensing |
|---|

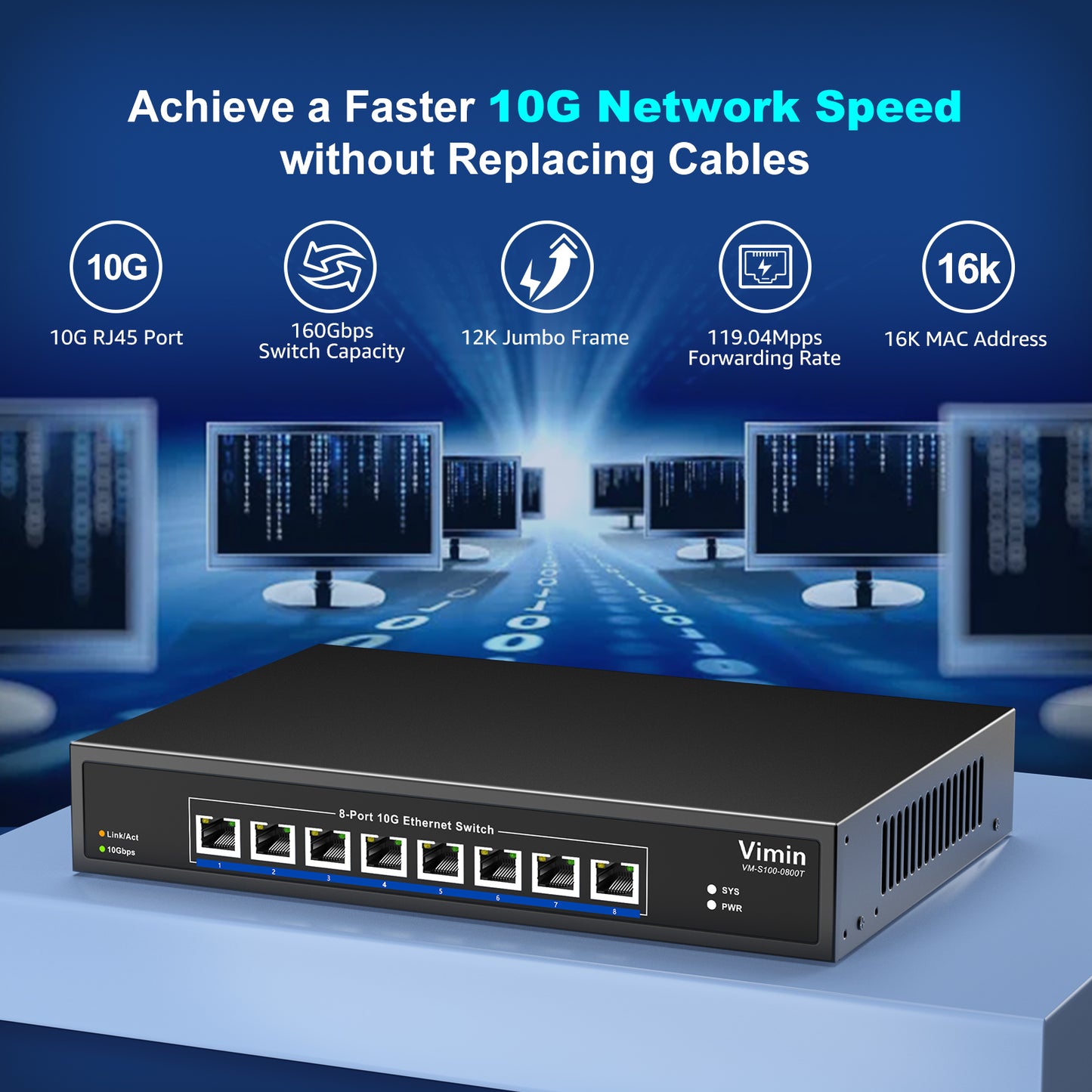

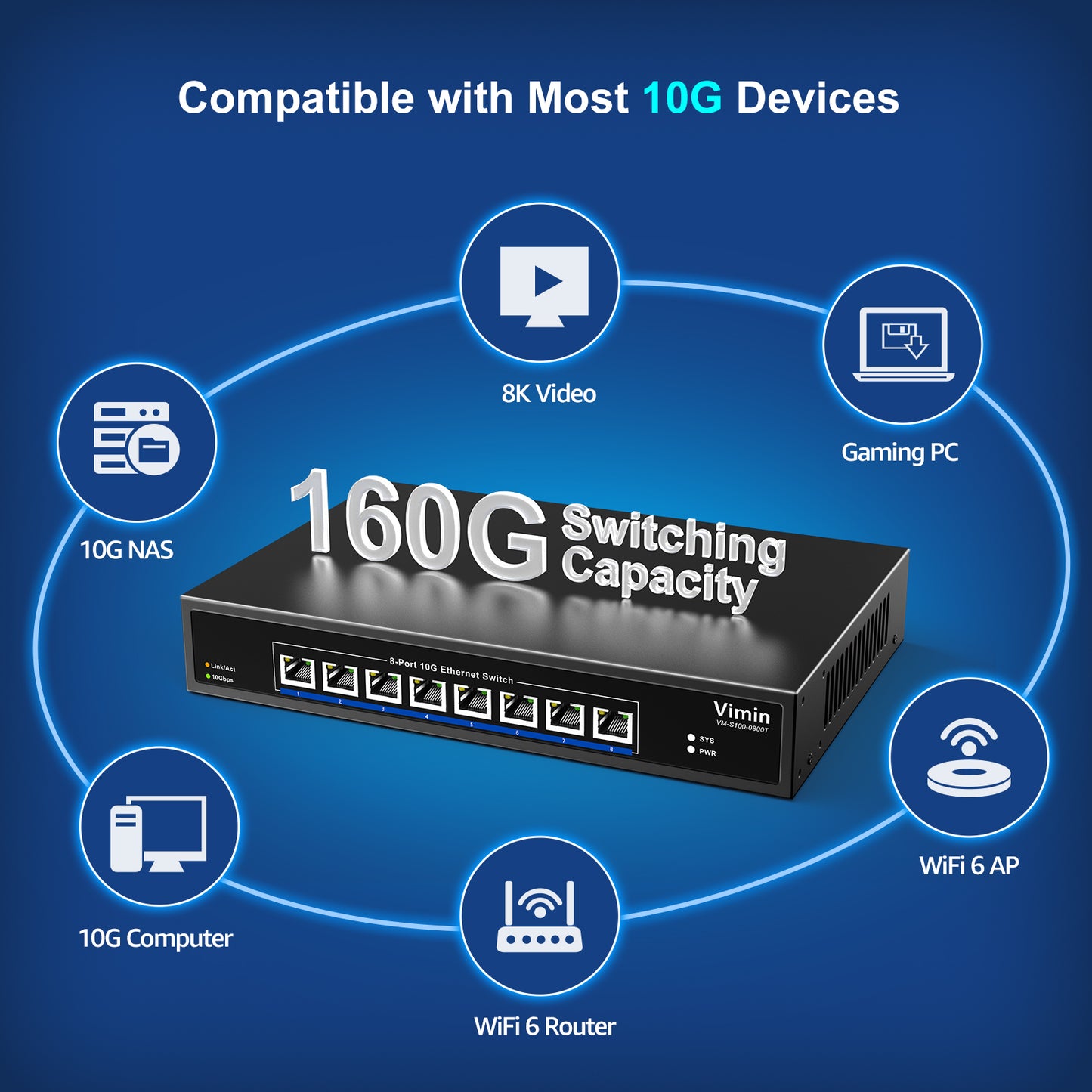

| Switching Capacity | 160 Gbps |
|---|
| MAC Address | 16K |
|---|
| MAC Address Learning | Automaticaly learning, automatically aging |
|---|
| Jumbo Frame | 12K |
|---|
| Transfer Mode | store-and-Forward |
|---|
| Network Protocol | IEEE802 . 3, IEEE 802 . 3U , IEEE802 . 3ab,
IEEE802 .3cb, IEEE 802 . 3bz, IEEE802 . 3X |
|---|

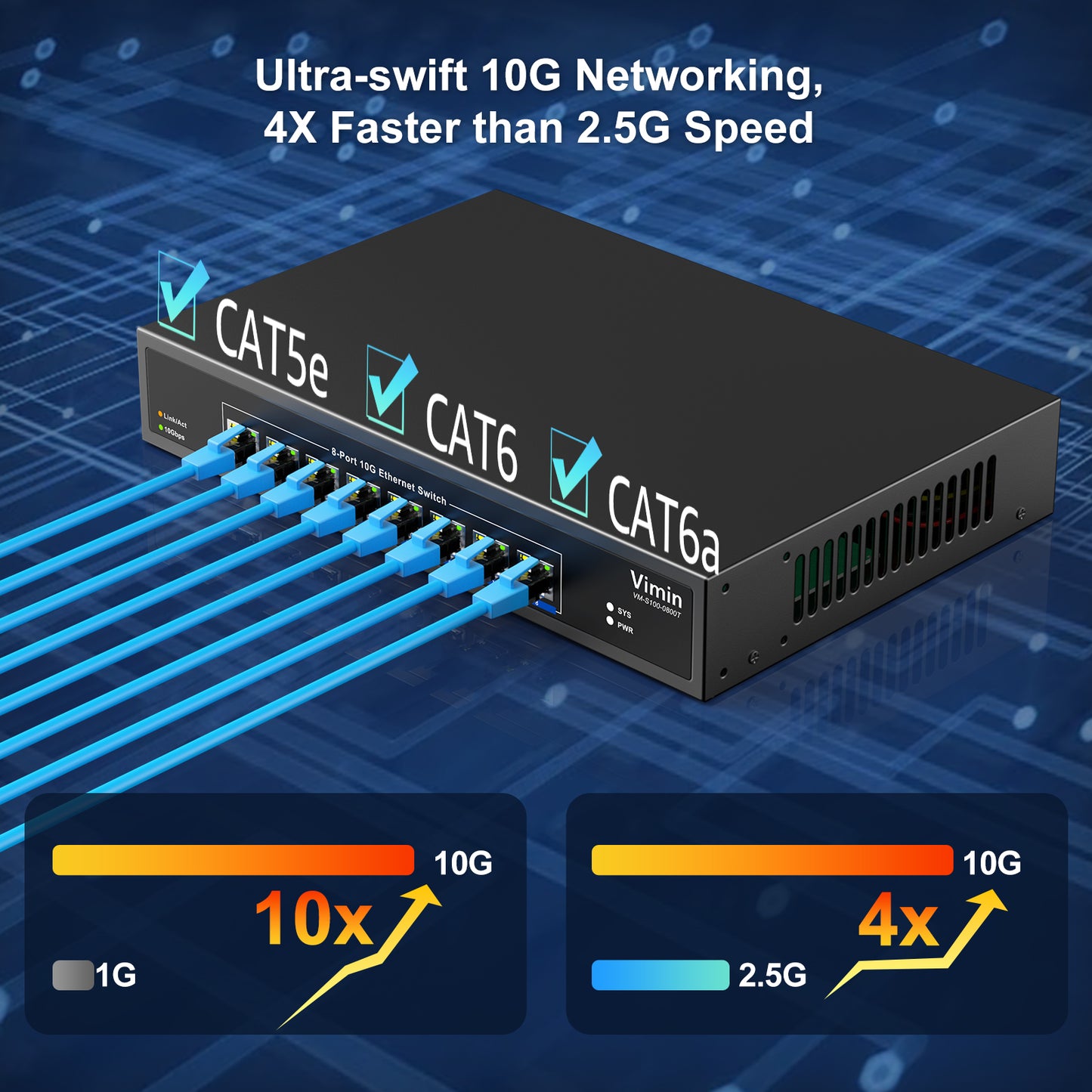

| Network Medium | 100Base-Tx: UTP/STP Of cat. 5 or above (Maximum 100 m)
1000Base-T: UTP/STP Of cat. 5e or above (Maximum 100 m)
2 . 5GBase-T:UTP/STP Of cat. 5e or above (Maximum 100 m) 5GBase-T: UTP/STP Of cat. 5e or above (Maximum 100 m) 10GBase-T: UTP Of cat6 (Maximum 55 m) or STP Of cat7 (Maximum 100 m) |
|---|
| Packet Forwarding Rate | 100Base-TX: 148810 pps/port
1000Base-TX: 1488095 pps/port 2 . 5GBase-TX: 3720238 pps/port 5GBase-TX: 7440476 pPS/port
10GBase-TX: 14880952 PPS/por |
|---|
| Weight and Size | 270* 181 *44 mm (10 . 6*7 . 1 * 1 . 7 inch) |
|---|
